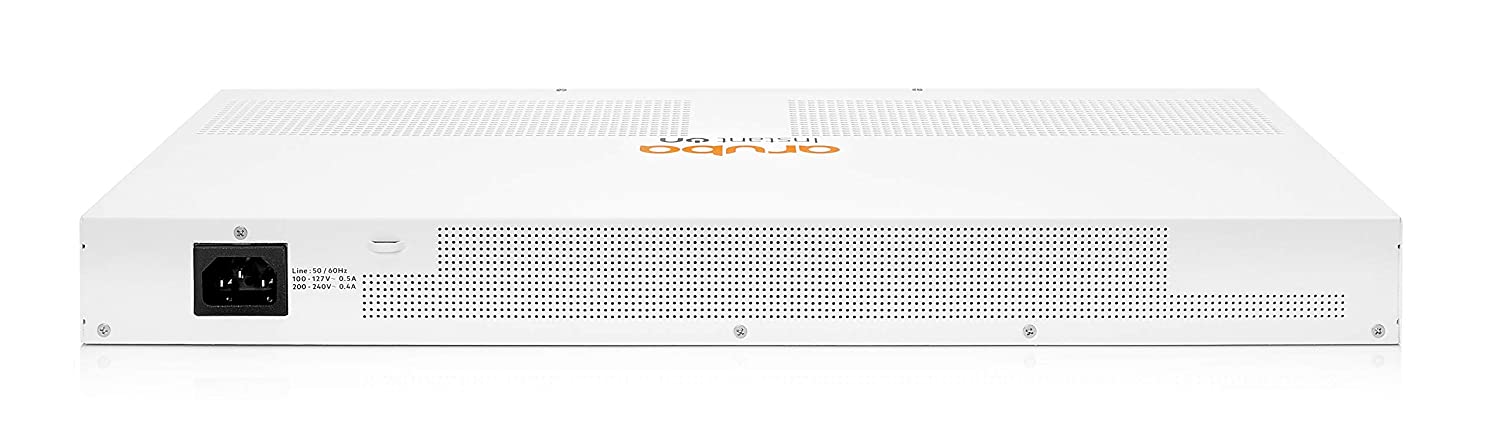

Aruba Instant On 1930 24G 4SFP/SFP+ Switch (JL682A)
Seven advanced smart managed Layer 2+ Gigabit switches for high-performance connectivity.
Non-PoE and Class 4 PoE (i.e. PoE+) 8-, 24- and 48-port models for deployment flexibility.
1G/10G SFP+ ports on 24-and 48-port models for fiber connectivity.
Aruba Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely.
Option to manage your switches through local web GUI.
Limited Lifetime Warranty.
DifferentiatorAdvanced, smart-managed, fixed-configuration Gigabit switches designed for small businesses. Easy-to-deploy, secure and affordable. The first switches with Instant On “anywhere, anytime” configuration and management. Using the Instant On mobile app or the cloud-based web portal, quickly setup, monitor and manage the 1930 switch. Can also choose to manage the device through the local web GUI. This model has 24 10/100/1000 RJ-45 and 4 SFP 1/10GbE ports.
Power consumption22.6 W maximum, 9.3 W idle
Input voltage100 – 127 / 200 – 240 VAC
Ports24 RJ-45 10/100/1000 ports, 4 SFP 1/10GbE ports
Switching capacity128 Gbps
Throughput95.23 Mpps, maximum
Memory and processorARM Cortex-A9 @ 800 MHz
512 MB SDRAM, 256 MB flash
1.5 MB packet buffer
Management featuresAruba Instant On Portal, Web browser, SNMP Manager
Warranty Limited Lifetime Warranty with 24×7 phone support for 90 days and chat support for the entire warranty duration
Weight 5.32 lb
Weight 2.41 kg
Minimum dimensions ( H x W x D)1.73 x 17.42 x 8.72 in
Minimum dimensions ( H x W x D)4.39 x 44.25 x 22.15 cm
